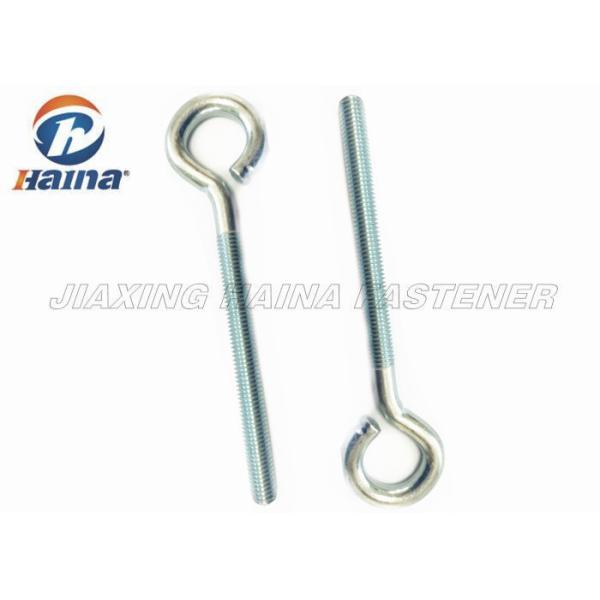

Custom Fastener Galvanized White Color Gr.4.8 Carbon Steel Wire Bent Eye Bolt
1. Product Description
Sheep eye bolts, also known as sheep eye, sheep eye, sheep eye nail sheep eye screws, etc., are widely used in jewelry, hanging accessories, but also one of the common hardware accessories architectural decoration.
Eye bolts feature a closed loop design that secures cables and chains in order to support the weight of heavy hanging objects such as plumbing pipes and wires.
An eye screw, also referred to as a screw eye or an eye bolt is a special type of screw that is curved into a loop on one end instead of being flat. A traditional screw has a flat end with an indent for the screwdriver to be inserted into, and the other end is made up of the threads of the screw, the rotating spiral-like lines that curve around the screw and allow it to go into materials more easily. The eye screw has threads at one end, but not on the top. Instead, a large circle is formed by the bent end of the screw.
Eye bolts are manufactured from high tensile steel, These threaded eye bolts have either a metric or imperial (inch) eye at the top of the bolt, this can be used on heavy duty applications such as large access panels and gates.
Eye bolt surface treatment: hot-dip galvanizing, black, white coating, plating color, and other anti-corrosion measures,
materials are: Q235,45 #, 40Cr, 35CrMoA, stainless steel 304 316 stainless steel and the like.
2. Specification
Size
(B) | Inside Eye Diameter
(D) | Overall Length
(E) | Thread Length
(F) |
| 8-32 (A) |
| 1-1/8 | 1/4 | 1-5/8 | 1 |
| 10-24 (A) |
| 3/4 | 3/8 | 1-1/2 | 3/4 |
| 1 | 3/8 | 1-3/4 | 7/8 |
| 1-5/16 | 5/16 | 2 | 1-5/16 |
| 1-1/2 | 3/8 | 2-1/4 | 1-3/8 |
| 1-3/4 | 3/8 | 2-1/2 | 1-5/8 |
| 2 | 3/8 | 2-3/4 | 1-7/8 |
| 2-1/4 | 3/8 | 3 | 2-1/8 |
| 12-24 (A) |
| 1-1/2 | 3/8 | 2-3/8 | 1-3/ |
3. Application
The advantage of an eye screw is that it allows the user to hang things from it and takes little time to install. It may be used to attach two materials together or simply to hang a picture on a wall. They are also used to hook cables together for supporting objects. The eye screw can only hold a certain amount of weight, however, and is best for holding light to medium-weight objects. For this reason it is not the best choice to use in heavy construction.
4. Advantages
Jiaxing Haina Fastener Co. Ltd provide you with the highest quality products and services, and welcomes your comments, questions and concerns. Please complete the form below to send a message to our customer service department and a representative will get back to you as soon as possible.
- Professional Manufacturer: All of our Fastener are designed and manufactured according to buyers' specification and performance.
- Quality is guaranteed: Durability testing and critical technical design to enhance fasteners lifetime.
- Cost effective: Competitive prices with factory directly supply
- Perfect fastening solution with 20 years experiences to solve your problem: Wide range of parts selection.
- Customized Ideal Fasteners: customized services according to the samples and drawings offered.
5. More pictures
